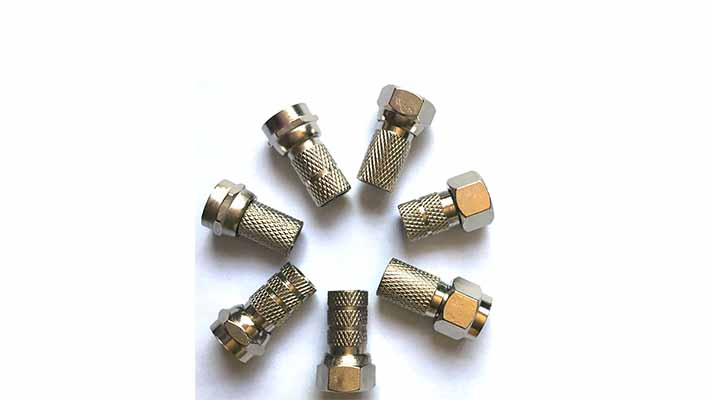

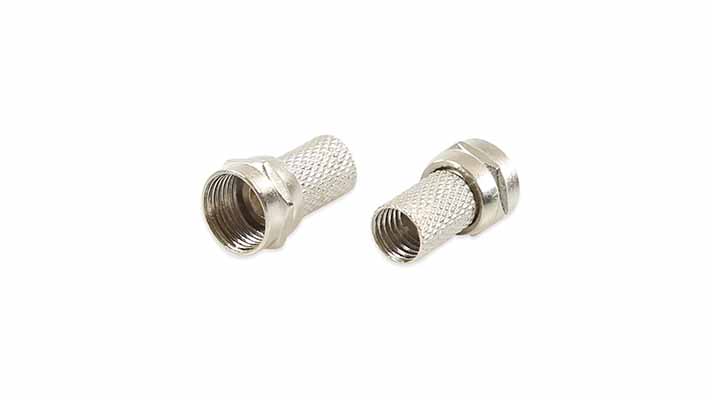

F type Coaxial Cable Connector
- Frequency Range: DC~1 GHz
- Impedance: 75 Ω
- Bodies: Brass /Nickel plated
- Use:for broadcast and TV systems
- Product description: F type Coaxial Cable Connector
Product Description:
F type Coaxial Cable Connector
F connectors, mating by a screw-lock mechanism (3/8’-32) are mainly used in 75ohms cable distribution for broadcast and TV systems especially in CCTV or analog TV, CATV, amplifiers, and branch distributors. They can be used in impedance matching or non-impedance matching signal transmission, with featuring easy fit,anti-vibration, reliable performance and least cost.
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 75Ω | Dielectric Withstanding voltage | 1500V(r ms) | |||
| Frequency range | DC~1GHz | Center conductor retention force | ≥0.2 N | |||
| Durability(mating) | 500 Cycles | |||||
| Voltage Standing Wave Ratio | Straight | ≤1.20 | ||||
| Right angle | Right angle ≤1.30 | |||||
| Material And Plating | ||||||
| Body | Brass , nickel plated | |||||
| Pin contact | Brass , gold or silver plated | |||||
| Resilient contact | Tin bronze, gold or silver plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Silicon rubber | |||||
| Crimp ferrules | Copper alloy , nickel or gold plated | |||||
