ADSS Double Jacket Medium Span Cable

ADSS Double Jacket Medium Span Cable

  • Installation : -30ºC to +70ºC
  • Operating : -40ºC to +70ºC
  • The design life span is over 30 years.
  • Can be installed without shutting off the power
  • Product description: ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments
  • INQUIRY    EMAIL
Product Description:


ADSS Double Jacket Medium Span Cable

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network.

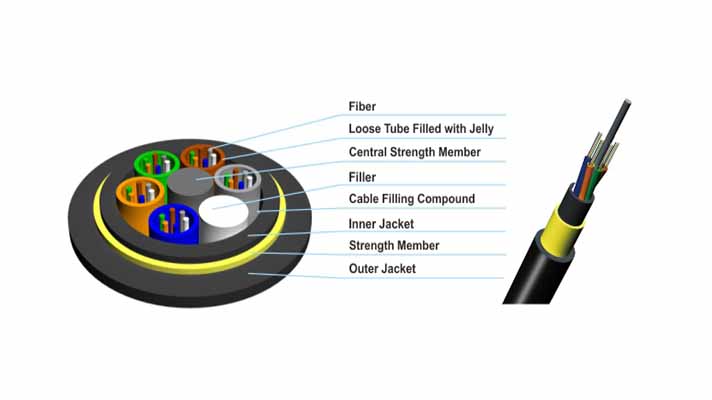

Product Construction:

Fiber:

2-288 fibers

Uni-loose tube gel-filled

Central Strength Member:

Fiberglass reinforced plastic (FRP)
Inner Jacket:

Black UV and waterproof polyethylene (PE).

Strength Member:
Dupon Kevlar Yarn

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features:

Can be installed without shutting off the power.

Excellent AT performance. The maximum inductive
at the operating point of AT jacket can reach 25kV.

Light weight and small diameter reducing the load
caused by ice and wind and the load on towers and backprops.

Large span lengths and the largest span is over 500m.

Good performance of tensile strength and temperature.

The design life span is over 30 years.


Applications:

The actual status of overhead power lines is taken into full
consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied.

For power lines equal to or over 110kV, AT outer sheath is applied.

Fiber clolors:
