  • Cat 6 F/UTP PVC Cable

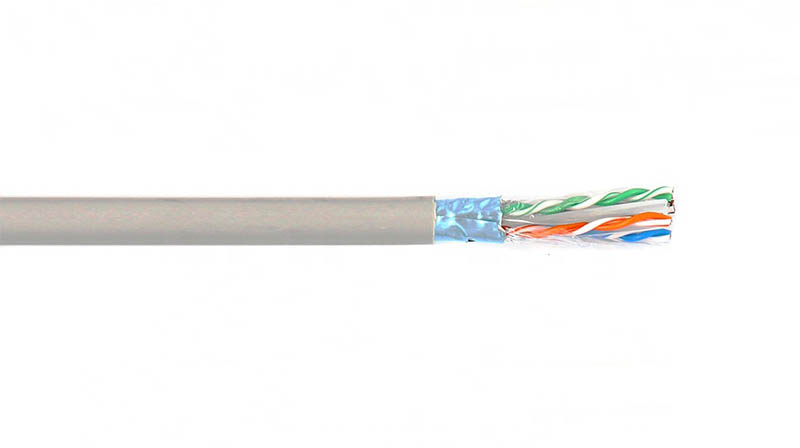

Cat 6 F/UTP PVC Cable

Cat 6 F/UTP PVC Cable

  • Conductor:Copper/CCA
  • MOQ:100Box
  • For data transmission
  • Packing: 305m/Pull Box
  • Product description: Cat 5E F/UTP PVC Cable,ethernet cable,Category 5 (CAT 5E), Category 6 (CAT 6 and CAT 6A) ,Category 7 (CAT 7) cables
  • INQUIRY    EMAIL
Product Description:

APPLICATION


An armoured unscreened twisted multi-pair high performance cable, used mainly for data transmission. Category 6 cables
support a frequency range of up to 250MHz and designed for transmission speeds of up to 1 gigabit per second (Gigabit
Ethernet). For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.


CHARACTERISTICS
Temperature Rating            60°C
Minimum Bend Radius         8x overall diameter


CONSTRUCTION

Conductor                          Class 1 solid Copper
Insulation                           Solid PE (Polyethylene)
Filler                                  LSZH Cross Member
Inner Sheath                      LSZH (Low Smoke Zero Halogen)
Armour                              SWA (Steel Wire Armour)
Sheath                               LSZH (Low Smoke Zero Halogen)


Core Identification


Pair 1: Blue White/Blue
Pair 2: Orange White/Orange
Pair 3: Green White/Green

Pair 4: Brown White/Brown


Sheath Colour
Black
