RG6 SATV satallite systems Coax Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG6 SATV satallite systems Coax Cable
Product Description:

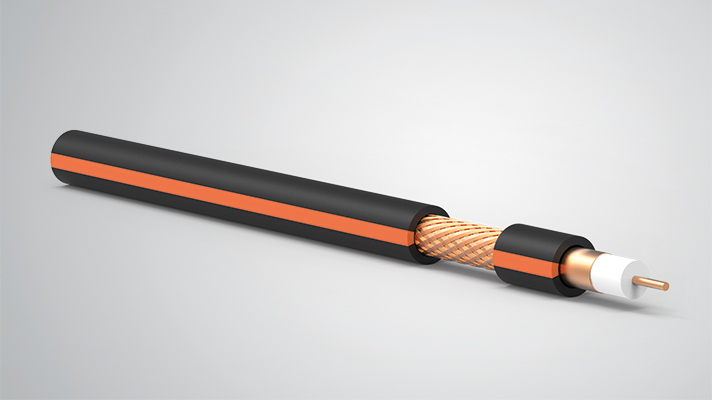

RG6 SATV satallite systems Coax Cable
Used in low attenuation requied systems such as indoor CATV, CCTV distribution and SATV satallite systems as connection cable.
Inner Conductor
Cu
Conductor Diameter
1 x 1,02 mm
Insulation
FPE
Insulation Diameter
4,57 mm
Screen Tape
Cu-Pes 100%
Braid
Braid with Copper Wires
Outer Sheath
PVC
Sheath Diameter
6,8 mm
Colour of Sheath
Black – Orange
| TECHNOLOGY DATA | |
|---|---|
| Characteristic Impedance | 75±3Ohm |
| Capacitance | 52±1pF/m |
| Velocity | >82% |
| Conductor & Dielectric To stick (kgt/m 1m/min) | 2.55kgf (10.2kgf/m) |
| Insulation resistance | 1000MΩ(20℃) |
| Frequence (at 20℃) | Max.Attenuation |
| 5MHz | 1.90dB/100m |
| 55MHz | 5.30dB/100m |
| 211MHz | 10.0dB/100m |
| 270MHz | 11.0dB/100m |
| 300MHz | 11.60dB/100m |
| 330MHz | 12.30dB/100m |
| 400MHz | 13.60dB/100m |
| 450MHz | 14.40dB/100m |
| 550MHz | 16.20dB/100m |
| 750MHz | 19.00dB/100m |
| 870MHz | 20.60dB/100m |
| 1000MHz | 21.49dB/100m |
