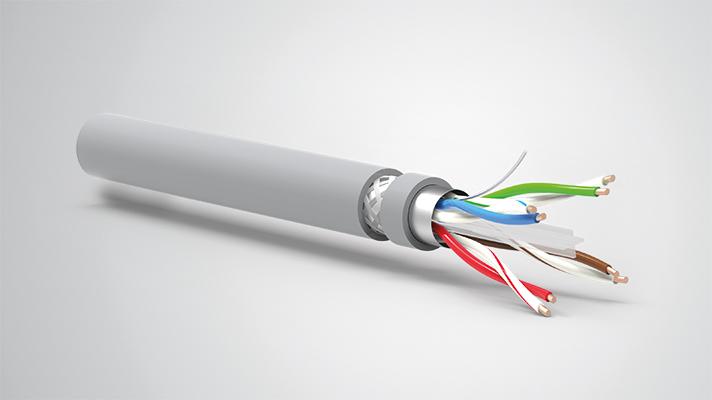

SFTP CAT6 23AWG Data Lan Cable

SFTP CAT6 23AWG Data Lan Cable

  • Brand: FUU/OEM
  • MOQ:100Box
  • Impedance:100Ohm
  • Packing: 305m/Pull Box
  • Product description: SFTP CAT6 23AWG Data Lan Cable
  • INQUIRY    EMAIL
Product Description:



SFTP CAT6 23AWG Data Lan Cable

These cables used in data transmission systems that work up to 200 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT6 FTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.


CAT6 is a standardized twisted pair cable used specifically in gigabit(Gb) Ethernet networks at a higher transmission frequency of 250MHz,and its feature is more stringent specifications for crosstalk and system noise .they apply to 10 BASE-T,100BASE-TX&1000BASE-T ETHERNET and 10GBASE-T ETHERNET .

 SPECIFICATIONS:
Conductor Solid  Bare Copper
Conductor Dia. 23AWG
Insulation PE
Insulation Dia. 0.98±0.02mm
Drain wire BC/CCS
Shielding AL Foil and Braid
Jacket PVC
Jacket Dia. 6.6±0.2mm
Number of shielded pairs
Colour code pair 1 Blue-White / Blue
Colour code pair 2 Orange-White / Orange
Colour code pair 3 Green-White / Green
Colour code pair 4 Brown-White / Brown
 ELECTRICAL CHARACTERISTICS:
High frequency (at 20°)
Type Attenuation  NEXT PS NEXT PS ACR PS ELFEXT (db) ELEFXT (db ) Return Loss
1 2.0 74.3 72.3 70.3 64.8 67.8 20
4 3.8 65.3 63.3 59.5 52.8 55.8 23
8 5.3 60.8 58.8 53.5 46.7 49.7 24.5
10 6 59.3 57.3 51.3 44.8 47.8 25
16 7.6 56.2 54.2 46.6 40.7 43.7 25
20 8.5 55 53 44 39 42 25
25 9.5 53 51 42 37 40 24
31.2 10.7 51.9 49.9 39.2 34.9 37.9 23.6
62.5 15.4 47.4 45.4 30 28.9 31.9 21.5
100 19.8 44.3 42.3 22.5 24.8 27.8 20.1
200 29 39.8 37.8 8.8 18.8 21.8 18
250 32.8 38.3 36.3 3.5 16.8 19.8 17.3
Characteristic Impedance: 100±15Ω
Conductor Resistance ≤9.38Ω/100m
Insulation Resistance: 100mΩ
Mutual Capacitance: <5.6nF/100m
Resistance Unbalance: 5%Max
Capacitance Unbalance: 330pF/100m
