Siamese RG59 Copper SPE CCTV Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: Siamese RG59 Copper SPE CCTV Cable
Product Description:

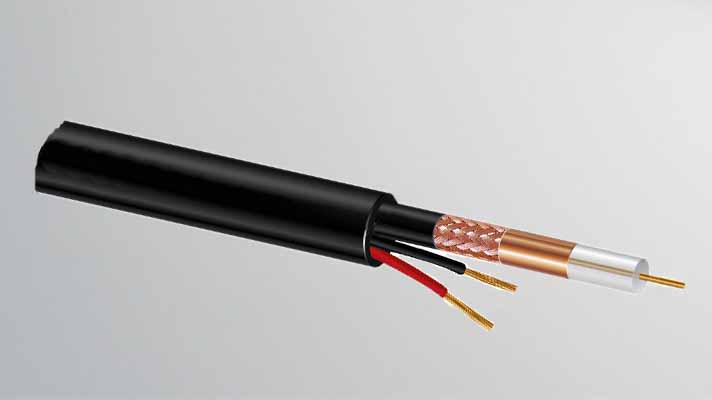

Siamese RG59 Copper SPE CCTV Cable
| Construction Parameters: | ||
| Inner Conductor | 0.032"/0.81mm/20AWG Bare Copper | |
| Dielectric | 0.144"/3.66±0.05mm Foamed/Solid Polyethylene | |
| First Shield | Bonded Aluminum Foil/Copper Foil | |
| Second Shield | 0.005"/0.12mm Copper Clad Aluminum | |
| % Coverage | 95 nom | |
| Jacket | 0.236"/6.00±0.1mm PVC (ETL/UL CM) | |
| Power Wire Conductor | 2 - 18 AWG 7×0.0145"/7×0.37mm CCA | |
| Power wire Diameter of insulation | 0.075"/1.90mm PVC (ETL/UL CM) | |
| Power Wire Color Code | Red,Black | |
| Jacket | 0.199"/5.05±0.1mm PVC (ETL/UL CM) | |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV Run Lengths | |
| Limited Length | Typical run length up to 750 feet | |
|
|
||
| Electrical Characteristics: | ||
| Capacitance | 52±1 pF/m 17±0.3 pF/ft | |
| Impedance | 75±3 Ω | |
| Resistance | 35.73 Ohms/KM 11.72 Ohms/KM | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 70 | |
| Max Operating Voltage(KVMS) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 60℃ | |
| RoHS | YES | |
|
|
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.29 | 0.95 |
| 10 | 0.68 | 2.23 |
| 50 | 1.80 | 5.90 |
| 100 | 3.00 | 9.84 |
| 200 | 3.54 | 11.61 |
| 400 | 4.71 | 15.44 |
| 700 | 6.40 | 20.98 |
| 900 | 7.33 | 24.03 |
| 1000 | 7.80 | 25.57 |
