  • 6×0.22mm² Security Alarm Cable
6×0.22mm² Security Alarm Cable

6×0.22mm² Security Alarm Cable

  • Conductor:Electrolytic Copper Conductor
  • MOQ:10KM
  • Use:indoor signal and data transfer
  • Packing: roll, wooden spool, carton, pallet
  • Product description: 6×0.22mm² Security Alarm Cable
  • INQUIRY    EMAIL
Product Description:

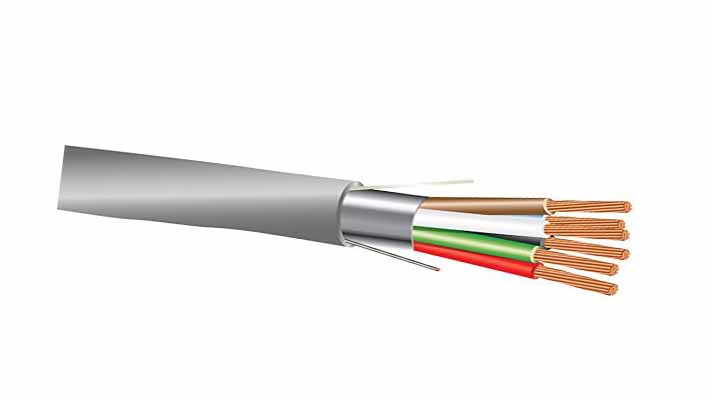

6×0.22mm² Security Alarm Cable


This type of cable are use fixed indoor installations and signal communicaiton. The screen protects the cable core against electrical noises and interferences.

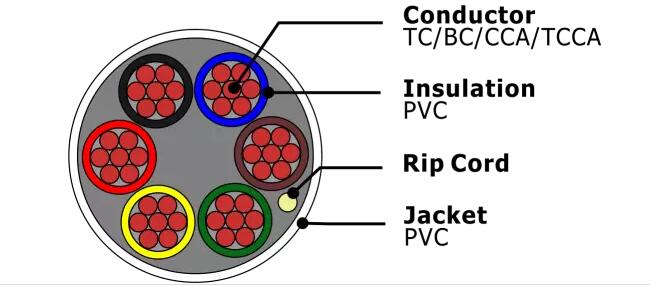

Conductor: 6 x (7/0.20mm TC/BC/CCA/TCCA)

Dielectric:Type PVC

Diameter: 0.95mm

Color Code: 1Black  2Red 3White(or Yellow) 4Green 5Brown 6Blue

Drain Wire:7 x 0.20mm (TC/BC/CCA/TCCA)

Shield:Aluminum Foil

Rip Cord:Cotton Wire

Jacket: 4.10mm PVC


Electrical Properties :

Temperature Rating

-20 ~ +60℃)

Operating Voltage

300 Volts max

Capacitance

15 pf/ft nom.

Impedance

100 Ohms nom.

DC Resistance

16.5 Ohms/M' at 20
