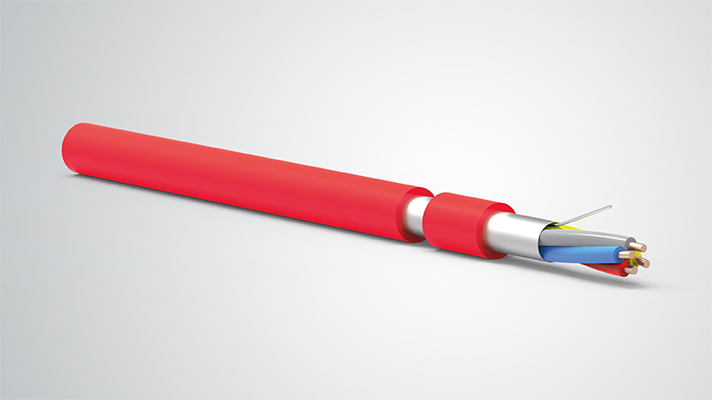

Aluminum Foil Shield Fire Alarm Cable PVC Insulation
- Conductor:Electrolytic Copper Conductor
- MOQ:10KM
- Use:indoor signal and data transfer
- Packing: roll, wooden spool, carton, pallet
- Product description: Aluminum Foil Shield Fire Alarm Cable PVC Insulation
Product Description:
Aluminum Foil Shield Fire Alarm Cable PVC Insulation
These cables are used as fire alarm cables as an fixed indoor installations. Screen provides protection against electromagnetic interfences. Additionally these cables are suitable for applications at small bending radius
|
CABLE CONSTRUCTION
|
|
|
Conductor
|
Cu
|
|
Insulation
|
PVC compound, YI1; VDE 0207-4
|
|
Core Identification
|
VDE 0815
|
|
Pair
|
2 pairs twisted as star-quad
|
|
Lay-up
|
Pairs laid up in layers of optimum pitch
|
|
Seperator
|
Polyester Tape
|
|
Screen
|
Tinned Cu drain wire under the Al-Pes tape
|
|
Drain Wire
|
0,40mm ≤ 10 pairs phi : 0,60 > 10 pairs
|
|
Outer Sheath
|
PVC Compound
|
|
Sheath Color
|
PvC/RAL-3000 Red
|
|
ELECTRICAL PARAMETERS
|
|
|
Standard
|
VDE 0815
|
|
Conductor Resistance (loop)
|
0,60mm : 65 Ω/km, 0,80mm : 36 Ω/km
1,0mm : 43,8 Ω/km, 1,38mm : 23,0 Ω/km
|
|
Insulation Resistance
|
Min. 100 MΩ.km
|
|
Mutual Capacitance
|
Max. 100 nF/km
|
|
Capacitance Unbalance
|
Max. 300 pF / 100mt
|
|
Rated Voltage
|
Max. 300 V
|
|
Test Voltage
|
Core/core & core/screen : 800 V
|
|
Temperature Range
|
- 30°C ~ + 70°C
|
|
Min. Bending Radius
|
10 x D
|
|
No of Cores x Cross Section (mm²)
|
Approx. Outer Diameter (mm)
|
Copper Weight (kg/km)
|
Approx. Cable Weight (kg/km)
|
|
1 x 2 x 0,60
|
4,5
|
7
|
25
|
|
2 x 2 x 0,60
|
6,0
|
13
|
35
|
|
3 x 2 x 0,60
|
6,2
|
18
|
45
|
|
4 x 2 x 0,60
|
6,7
|
24
|
60
|
|
5 x 2 x 0,60
|
7,4
|
30
|
70
|
|
1 x 2 x 0,80
|
5,7
|
11
|
40
|
|
2 x 2 x 0,80
|
8,1
|
21
|
60
|
|
3 x 2 x 0,80
|
8,5
|
31
|
80
|
|
4 x 2 x 0,80
|
9,2
|
41
|
100
|
