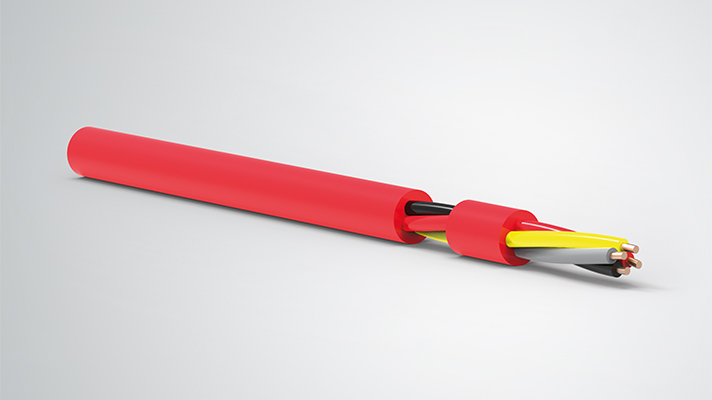

Fire Alarm Cable PVC Insulation
- Conductor:Electrolytic Copper Conductor
- MOQ:10KM
- Use:indoor signal and data transfer
- Packing: roll, wooden spool, carton, pallet
- Product description: Fire Alarm Cable PVC Insulation
Product Description:
DESCRIPTION
At indoor installation;
- Telephone exchanges and subscriber distributions
- Signal and data transmission
This type of cables are not suitable to be used as feeder cables or used for underground installations
CABLE CONSTRUCTION
|
Conductor
|
Insulaton
|
Colour Code
|
Stranding
|
|
Electrolytic Copper
|
PVC Compound
|
VDE 0815
|
Pairwise, pairs in layers
|
|
Wrapping
|
Sheath
|
Sheath Colour
|
|
|
PES Tape
|
PVC Compound
|
RAL 3000 Red
|
| No of Cores x Cross Section (mm²) | Approx. Outer Diameter (mm) | Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
| 1 x 2 x 0,80 + 0,80 | 5,5 | 35 | 11 |
| 2 x 2 x 0,80 + 0,80 | 6,6 | 54 | 21 |
| 4 x 2 x 0,80 + 0,80 | 8,6 | 90 | 41 |
| 1 x 2 x 1,00 + 0,80 | 6,5 | 51 | 19 |
| 2 x 2 x 1,00 + 0,80 | 8,0 | 82 | 34 |
| 1 x 2 x 1.50 + 1,50 | 7,4 | 76 | 34 |
| 2 x 2 x 1.50 + 1,50 | 8,6 | 125 | 63 |
| 1 x 2 x 2,50 + 1,50 | 8,3 | 99 | 53 |
| 2 x 2 x 2,50 + 1,50 | 10,2 | 165 | 101 |
