RG174 A/U Coaxial Satellite Cable PVC Insulated
- Brand: FUU/OEM
- MOQ:20KM
- Impedance:50Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG174 A/U Coaxial Satellite Cable PVC Insulated
Product Description:

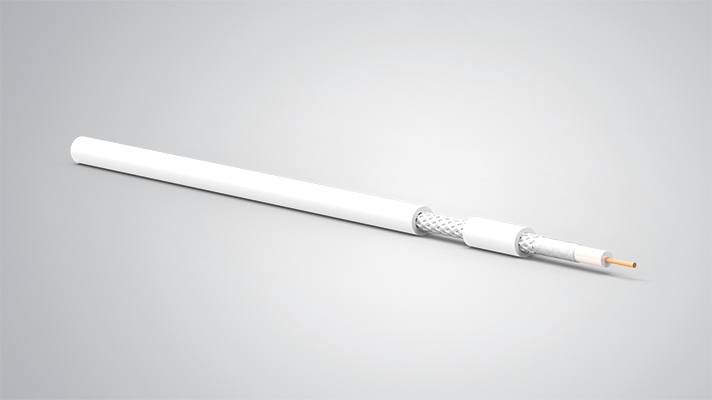

RG174 A/U Coaxial Satellite Cable PVC Insulated
These cables used as a connectioncable in data transmission and radio communication systems.
|
Cable Construction
|
|
|
Inner Conductor
|
Cu
|
|
Conductor Diameter
|
7 x 0,16 mm
|
|
Insulation
|
Solid PE
|
|
Insulation Diameter
|
1,52 mm
|
|
Braid
|
SnCu 90%
|
|
Outer Sheath
|
PVC
|
|
Sheath Diameter
|
2,80 mm
|
|
Colour of the Sheath
|
White
|
|
Approx Weight
|
11 kg/km
|
|
Standart Packing
|
100 - 500 - 1000m
|
|
Insulation Resistance
|
Mutual Capacitance
|
Velocity of Propagation
|
Operating Voltage
|
|
>2000MΩxkm
|
101±2 pF/mt
|
66 %
|
1,5 kV
|
|
Test Voltage
|
Bending Radius
|
Temperature Range
|
Impedance
|
|
3kV
|
15x Cable Ø
|
- 40ºC+70ºC
|
50±3 Ω
|
|
MHz
|
|||||
|
100
|
200
|
400
|
600
|
800
|
|
|
dB/100m
|
|||||
|
30,90
|
44,40
|
63,00
|
76,00
|
93,30
|
|
