RG213 50OHM Coaxial Cable
- Brand: FUU/OEM
- MOQ:10KM
- Impedance:50Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG213 50OHM Coaxial Cable
Product Description:

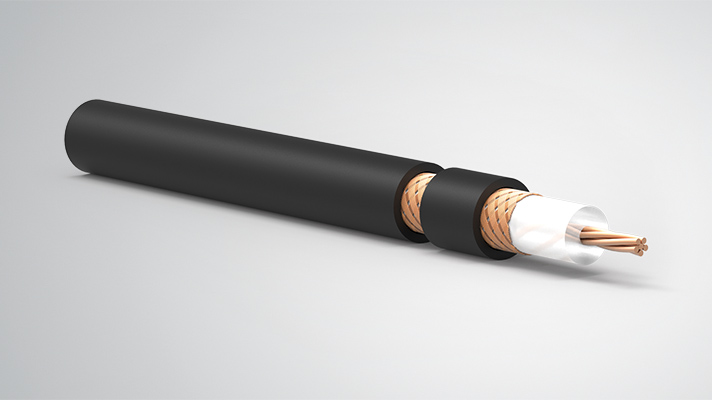

RG213 50OHM Coaxial Cable
These cables used as a connectioncable in data transmission and radio communication systems.
|
Construction Parameters: |
||||
|
Inner Conductor |
7×0.752mm Bare Copper |
|||
|
Dielectric |
7.24mm Solid PE |
|||
|
Shield 1 |
Nom. 7.85mm Bare Copper |
|||
|
Jacket |
10.30mm PVC |
|||
|
Jacket Thickness |
|
|||
|
Application |
|
|||
|
|
||||
|
Electrical Characteristics: |
|
|
|
|
|
Capacitance |
101.05 pF/m |
|||
|
Impedance |
50 Ω |
|||
|
Velocity of Propagation |
0.66 |
|||
|
Max Operating Voltage |
5000 VMS |
|||
|
Max Operating Frequency |
1000 MHz |
|||
|
Bending Radius |
40 mm |
|||
|
|
||||
|
Mechanical and Envrionmental Properties |
||||
|
Cable bend radius |
|
|||
|
Operating Temp Range |
-20 ℃ to 80℃ |
|||
|
Cable diamensions |
10.30mm |
|||
|
Attenuation(20℃): |
||||
|
Frequency (MHZ) |
Max Attenuation(dB/100ft) |
Max Attenuation (dB/100m) |
||
|
100 |
|
6.60 |
||
|
400 |
|
14.10 |
||
|
1000 |
|
24.00 |
||
