RG59 75% Braid Coaxial Cable for CCTV SYSTERM
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG59 75% Braid Coaxial Cable for CCTV SYSTERM
Product Description:
RG59 75% Braid Coaxial Cable for CCTV SYSTERM
RG 59 coaxial cable used to transmit high-frequency signals in various electronic devices, especially in radio and TV – transmitters, computers, transmitters.

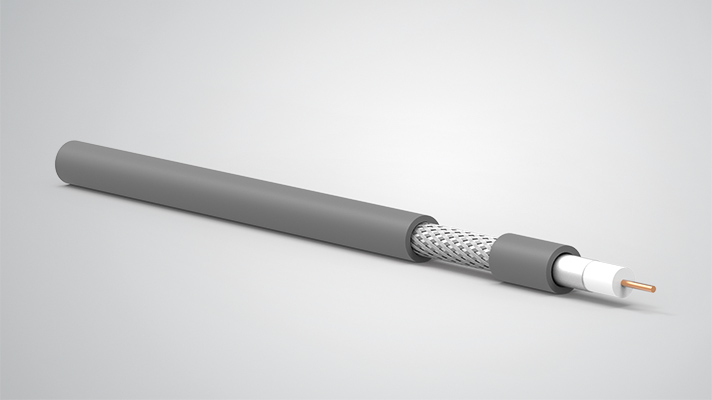

Cable scheme RG 59:
Central Copper Clad Steel Conductor
Isolation made from polyethylene foam
The screen is formed as the Copper/Al-Mg braid
PolyVinylChloride (PVC)
| Type | |
|---|---|
| Conductor Material | Copper Clad Steel |
| The diameter of the conductor, mm | 0.81 |
| The material of the dielectric | Foamed PE |
| Diameter Dielectric, mm | 3.66 ± 0.15 |
| Type of foil | Al-Tape bonded |
| The number of layers | 2 |
| Braid Material | AL-MG |
| Surface braid,% | 96X0.12 |
| Jacket wall thickness | 0.76 ± 0.15 |
| The Jacket material | PVC |
| Diameter of shell, mm | 6.0 ± 0.2 |
| Color | Black or white |
| TECHNOLOGY DATA | |
|---|---|
| Characteristic Impedance | 75±3Ohm |
| Capacitance | 50±1pF/m |
| Velocity | >85% |
| Shielding Effectiveness | >100db |
| Insulation resistance | 1000MΩ(20℃) |
| Frequence (at 20℃) | Max.Attenuation |
| 5MHz | 2.82dB/100m |
| 55MHz | 6.73dB/100m |
| 211MHz | 12.47dB/100m |
| 350MHz | 15.75dB/100m |
| 450MHz | 17.72dB/100m |
| 500MHz | 18.70dB/100m |
| 550MHz | 19.52dB/100m |
| 750MHz | 22.87dB/100m |
| 1000MHz | 26.64dB/100m |
| 1450MHz | 32.41dB/100m |
| 1750MHz | 36.04dB/100m |
