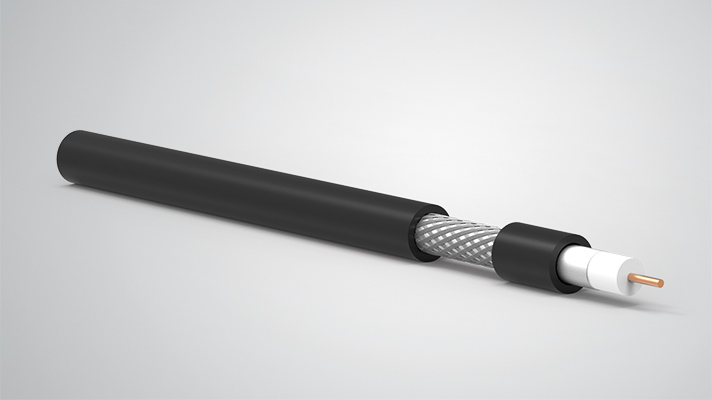

RG6U Indoor PVC Jacket CCTV Coaxial Cable
- Brand: FUU/OEM
- MOQ:30KM
- Impedance:75Ohm
- Packing: roll, wooden spool, carton, pallet
- Product description: RG6U Indoor PVC Jacket CCTV Coaxial Cable
Product Description:
RG6/U Indoor PVC Jacket CCTV Coaxial Cable
Quick Details:
• RG6 Cable, T0690-150BAP
• 18AWG CCS
• Polyethylene Insulation
• Bonded Copper PET foil
• 60% braiding coverage
• Standard-shield
• PVC jacket
Applications:
RG6U 60% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Description & Specifications:
18%-21% conductivity copper clad steel (18%-21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PVC jacket
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403″(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18″(4.57mm)
Shield:
1st shield: bonded copper tape.
2nd shield: 0.12 CCA braid wire, 4ends x16 carry. 60% coverage
Maximum ovality: 0.013″ (0.33)
Screening shield: ≧85dB
PVC Jacket
| TECHNOLOGY DATA | |
|---|---|
| Characteristic Impedance | 75±3Ohm |
| Capacitance | 52±1pF/m |
| Velocity | >82% |
| Conductor & Dielectric To stick (kgt/m 1m/min) | 2.55kgf (10.2kgf/m) |
| Insulation resistance | 1000MΩ(20℃) |
| Frequence (at 20℃) | Max.Attenuation |
| 5MHz | 1.90dB/100m |
| 55MHz | 5.30dB/100m |
| 211MHz | 10.0dB/100m |
| 270MHz | 11.0dB/100m |
| 300MHz | 11.60dB/100m |
| 330MHz | 12.30dB/100m |
| 400MHz | 13.60dB/100m |
| 450MHz | 14.40dB/100m |
| 550MHz | 16.20dB/100m |
| 750MHz | 19.00dB/100m |
| 870MHz | 20.60dB/100m |
| 1000MHz | 21.49dB/100m |
