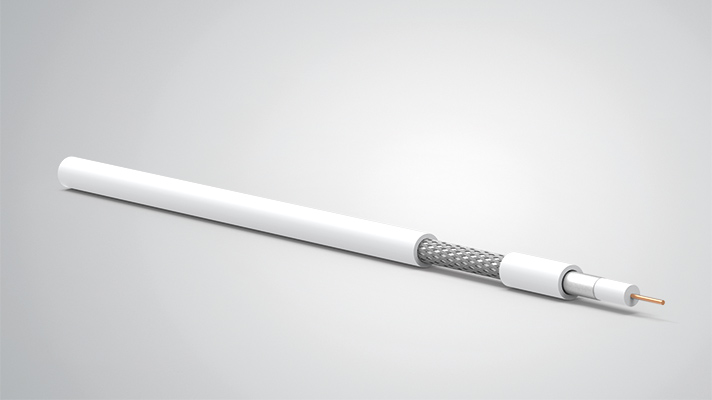

RG6U CCS 60% AL PVC 75 Ohm CCTV Coaxial Cable

RG6U CCS 60% AL PVC 75 Ohm CCTV  Coaxial Cable

Quick Details:

• RG6 Cable, T0690-150BAP
• 18AWG CCS
• Polyethylene Insulation
• Bonded aluminum PET foil
• 60% braiding coverage
• Standard-shield
• PVC jacket

Applications:

RG6U 60% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Description & Specifications:

18%-21% conductivity copper clad steel (18%-21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PVC jacket

Center conductor:

18AWG copper clad steel
Nominal diameter: 0.0403″(1.02mm)±0.01(0.0004)

Dielectric:

Gas expanded polyethylene
Nominal diameter over dielectric: 0.18″(4.57mm)

Shield:

1^st shield: bonded aluminum tape.
2nd shield: 0.12 aluminum braid wire, 4ends x16 carry. 60% coverage
Maximum ovality: 0.013″ (0.33)
Screening shield: ≧85dB

PVC Jacket
