2.5MM 2C+E TPS CABLE
- Brand: FUU/OEM
- MOQ:20KM
- Sheath color:Black/White
- Packing: Drum
- Product description: 2.5MM 2C+E TPS CABLE
Product Description:

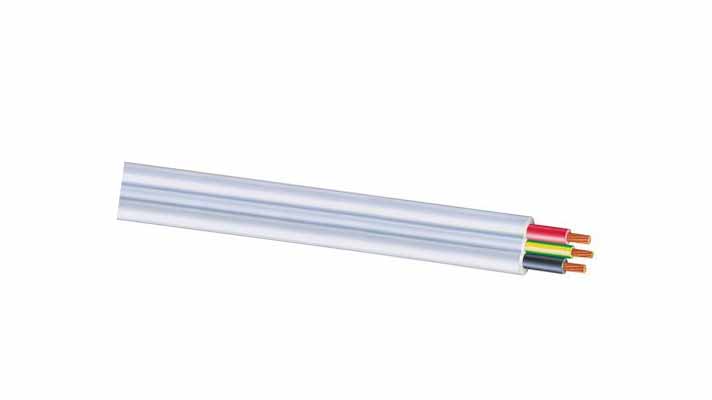

2.5MM 2C+E TPS CABLE
Two core plus earth flat cable with 450/750V V-90 insulation.
PVC sheathed complies with AS/NZS 5000.2 standards which was manufactured in accordance with PVC best practice guidelines.
Includes 90°C copper conductors.
It is suitable for fixed wiring installation for power circuits in domestic, commercial and industrial situations.
Conductor material: Copper
Outer sheath: PVC
Insulation: PVC
Cores x Area (mm2): 2 x 2.5 + 2.5 E
Rated Voltage Uo/U: 450/750 V
Max. conductor temperature in service: 75°C
Earth selection cross: 2.5 mm²
Nom Diameter: 5.3 x 12 mm
Outer sheath: PVC
Insulation: PVC
Cores x Area (mm2): 2 x 2.5 + 2.5 E
Rated Voltage Uo/U: 450/750 V
Max. conductor temperature in service: 75°C
Earth selection cross: 2.5 mm²
Nom Diameter: 5.3 x 12 mm
