TWIN AND EARTH CABLE
- Brand: FUU/OEM
- MOQ:20KM
- Sheath color:Black/White
- Packing: Drum
- Product description: TWIN AND EARTH CABLE
Product Description:

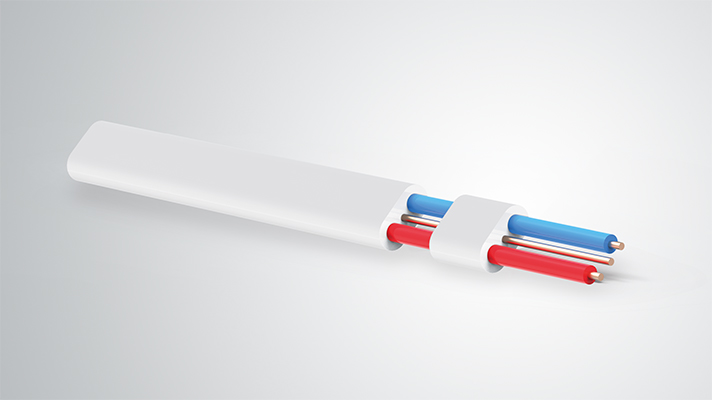

TWIN AND EARTH CABLE
1.British standard twin and earth cable 6242y
2.Copper conductor(solid or stranded)
3.PVC insulation
4.CE,GMC certification
Specifications:
|
2*0.5MM2+1*0.25MM2 |
OD:3.2*6.3MM |
|
2*0.75MM2+1*0.35MM2 |
OD:4.0*6.6MM |
|
2*1.0MM2+1*0.50MM2 |
OD:4.2*6.8MM |
|
2*1.5MM2+1*0.75MM2 |
OD:4.7*8.0MM |
|
2*2.5MM2+1*1.25MM2 |
OD:5.6*9.5MM |
|
2*4.0MM2+1*2.00MM2 |
OD:6.0*11.0MM |
1. Conductor: copper
2. Insulation: PVC (black and red)
3. Jacket: PVC (grey or white)
4. Rated voltage:300/500V
5. Working temperature: 70 °C
6. Standard: BS6004
7. Application:It is widely used in household and industrial electric wire for fixed installation
|
Cores/ |
Rated Voltage |
No of Wires |
Insulation Thickness |
Sheath Thickness |
Size |
Max.Conductor Resistance at 20℃ |
Min. Insulation Resistance at 70℃ |
||
|
(mm2) |
(mm) |
(mm) |
(mm) |
(MΩ.km) |
(MΩ.km) |
||||
|
Upper |
Lowest |
Copper |
Tinned |
||||||
|
2×0.75 |
300/500V |
1 |
0.6 |
0.9 |
3.8×5.9 |
4.6×7.1 |
24.5 |
24.8 |
0.012 |
|
2×1.0 |
300/500V |
1 |
0.6 |
0.9 |
3.9×6.1 |
4.8×7.4 |
18.1 |
18.2 |
0.011 |
|
2×1.5 |
300/500V |
1 |
0.7 |
0.9 |
4.4×7.0 |
5.3×8.5 |
12.1 |
12.2 |
0.011 |
|
2×2.5 |
300/500V |
1 |
0.8 |
1 |
5.1×8.4 |
6.2×10.1 |
7.41 |
7.56 |
0.01 |
|
2×4 |
300/500V |
1 |
0.8 |
1 |
5.6×9.2 |
6.7×11.1 |
4.61 |
4.7 |
0.0085 |
|
2×4 |
300/500V |
7 |
0.8 |
1 |
5.7×9.5 |
6.9×11.5 |
4.61 |
4.7 |
0.008 |
|
2×6 |
300/500V |
1 |
0.8 |
1.1 |
6.2×10.4 |
7.5×12.5 |
3.08 |
3.11 |
0.007 |
|
2×6 |
300/500V |
7 |
0.8 |
1.1 |
6.4×10.8 |
7.8×13.0 |
3.08 |
3.11 |
0.0065 |
|
2×10 |
300/500V |
7 |
1 |
1.2 |
7.9×13.4 |
9.5×16.2 |
1.83 |
1.84 |
0.0065 |
|
3×0.75 |
300/500V |
1 |
0.6 |
0.9 |
3.8×7.9 |
4.6×9.6 |
24.5 |
24.8 |
0.012 |
|
3×1.0 |
300/500V |
1 |
0.6 |
0.9 |
3.9×8.4 |
4.8×10.1 |
18.1 |
18.2 |
0.011 |
|
3×1.5 |
300/500V |
1 |
0.7 |
0.9 |
4.4×9.6 |
5.3×11.7 |
12.1 |
12.2 |
0.011 |
