GJYXTC8H Slef-Supported Loose Tube Drop Cable
- Installation : -30ºC to +70ºC
- Operating : -40ºC to +70ºC
- Fiber: 250µm colour fibers
- Strength Member: Aramid Yarn

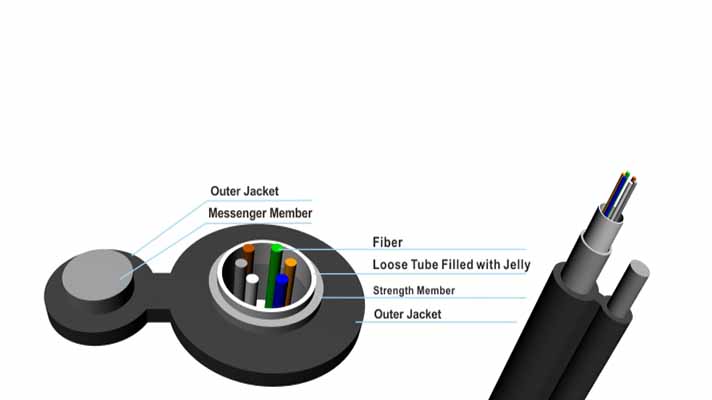

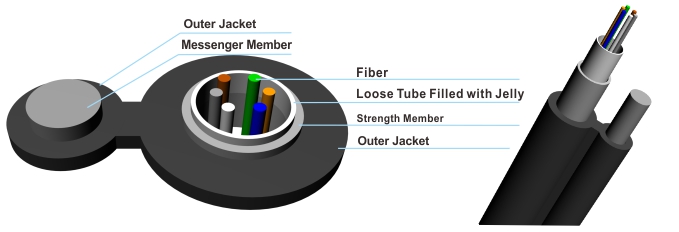

- Product description: The core with fibers placed in loose buffer tube and reinforced with aramid yarns,and cover with UV and Flame resistant LSZH Jacket. The cable cross section is a fig.8 made with a steel wire strength
Product Description:
GJYXTC8H Slef-Supported Loose Tube Drop Cable
GJYXTC8H Slef-Supported Loose Tube Drop Cable is designed especially for aerial installations. With fiber counts up to 12 fibers.
Product Construction:
Fiber:
2-12 fibers
Uni-loose tube gel-filled
Strength member:
Kevlar yarn
Messenger member:
1.2mm galvanized steel
Outer Jacket:
Black UV and flame resistant LSZH.
Features:
Uni-Loose tube gel-filled construction for superior fiber protection.
Kevlar yarn strength member to provide additional tensile strength.
Self-supporting Figure 8 design.
Compact, easy to install.
Applications:
Interbuilding voice or data communication.
Installed aerially.
FTTx, Access.Fiber clolors:
