Slef-Supported Tight Buffer Flat Drop Cable
- Installation : -30ºC to +70ºC
- Operating : -40ºC to +70ºC
- Fiber: 250µm colour fibers
- Strength Member: Aramid Yarn
- Product description: Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member
Product Description:
Slef-Supported Tight Buffer Flat Drop Cable
The 250um colored coating fiber is positioned in the centre. Two parallel FIber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color UV and flame resistant LSZH sheath.

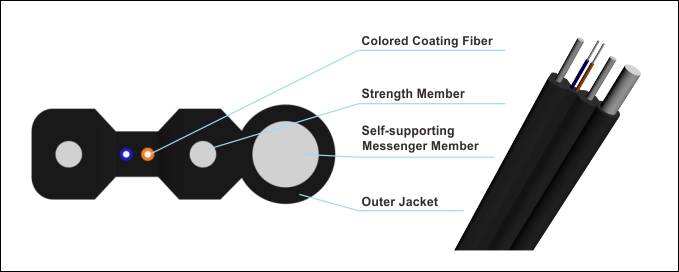

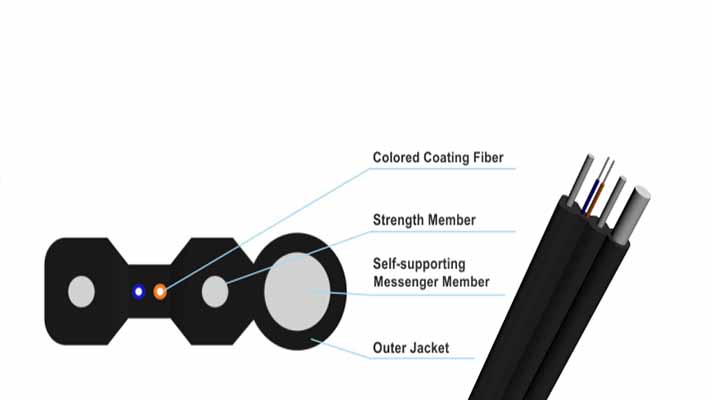

Product Construction:
Fiber:
1-4 fibers
250um colored coating fiber
Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)
Messenger Member:
Phosphatized steel Wire or zinc-coated wire
Outer Jacket:
UV and flame resistant LSZH
Features:
Good UV and flame resistant.
Bow type flat structure.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.
Designed for use with cheap attachment hardware.
Applications:
Used in access network or as access cable from outdoor to indoor
in customer premises .
Used as access building cable in premises distribution system,
especially used in indoor or outdoor aerial access cabling.
Options:
Fiber Type： G.652D, G.657A1 or G.657A2 single mode fiber
Fiber colors:
