GYFXTY-FG Uni-Loose Tube All Dielectric Round Drop cable

GYFXTY-FG Uni-Loose Tube All Dielectric Round Drop cable

GYFXTY-FG Uni-Tube All Dielectric Drop cable is specifcally designed for Fiber to the Subscriber applications. It is a round, all dielectric cable ideally suitedfor self-supporting drop-type installations as well as in lashed or conduit builds. Two embedded FRP member provide high tensile strength. The overall fiber glass yarn strength member is used for additional mechanical protection.

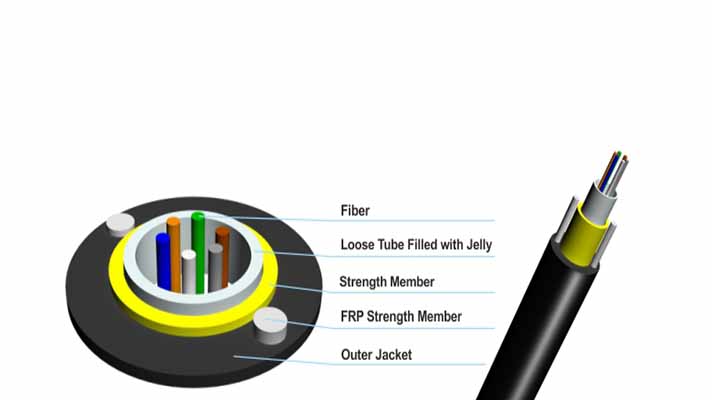

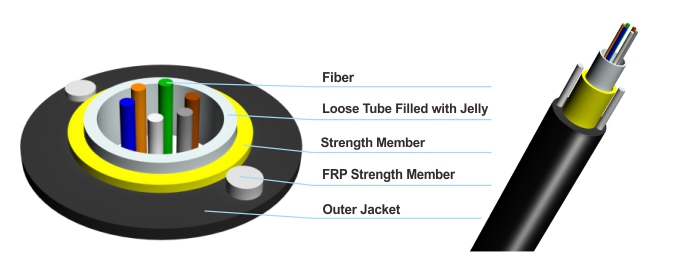

Product Construction:

Fiber:

2-12 fibers

Uni-loose tube gel-filled

Strength Member:
1. Embedded Fiberglass reinforced Plastic (0.5mm FRP)

2. Overall fiberglass reinforce yarn (Water Blocking)

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features:

All dielectric structure.

Uni-tube gel-filled construction for superior fiber protection.
Embedded FRP member provide high tensile strength.

Overall fiberglass reinforce yarn provide additional tensile strength.

UV and waterproof design.

Applications:

Inter building voice or data communication.

Aerial  installation.

FTTx, access.
